Performance

This page provides some performance benchmarks that give an idea of the overhead of using the OPA-Envoy plugin.

Test Setup

The setup uses the same example Go application that’s described in the standalone Envoy tutorial. Below are some more details about the setup:

  • Platform: Minikube
  • Kubernetes Version: 1.18.6
  • Envoy Version: 1.17.0
  • OPA-Envoy Version: 0.26.0-envoy

Benchmarks

The benchmark result below provides the percentile distribution of the latency observed by sending 100 requests/sec to the sample application. Each request makes a GET call to the /people endpoint exposed by the application.

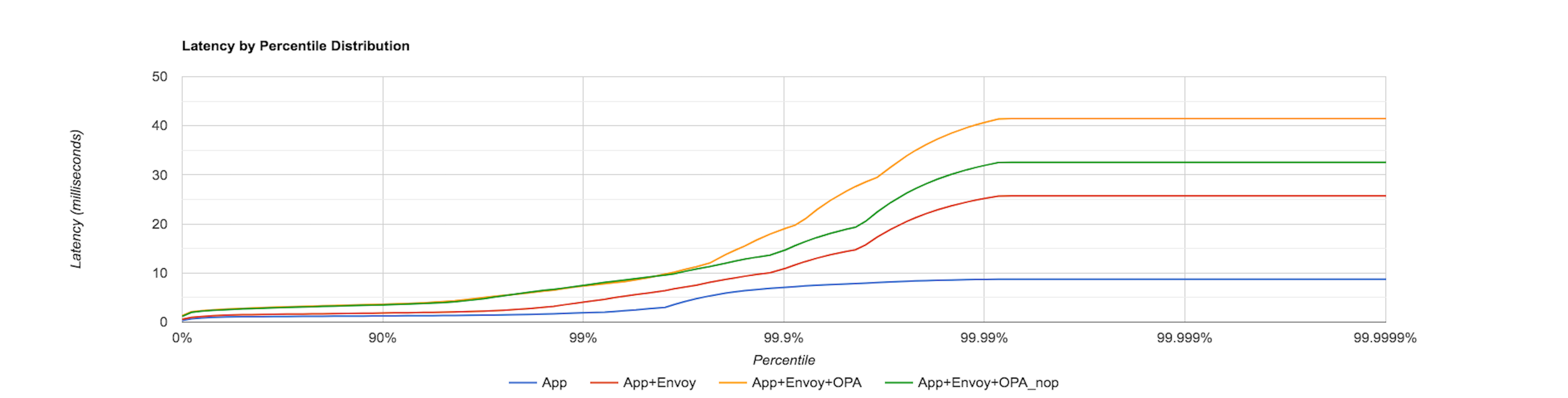

The graph shows the latency distribution when the load test is performed under the following conditions:

  • App Only

In this case, the graph documents the latency distribution observed when requests are sent directly to the application ie. no Envoy and OPA in the request path. This scenario is depicted by the blue curve.

  • App and Envoy

In this case, the distribution is with Envoy External Authorization API disabled. This means OPA is not included in the request path but Envoy is. This scenario is depicted by the red curve.

  • App, Envoy and OPA (NOP policy)

In the case, we will see the latency observed with Envoy External Authorization API enabled. This means Envoy will make a call to OPA on every incoming request. The graph explores the effect of loading the below NOP policy into OPA. This scenario is depicted by the green curve.

package envoy.authz

default allow = true
  • App, Envoy and OPA (RBAC policy)

In the case, we will see the latency observed with Envoy External Authorization API enabled and explore the effect of loading the following RBAC policy into OPA. This scenario is depicted by the yellow curve.

package envoy.authz

import input.attributes.request.http as http_request

default allow = false

allow {
    roles_for_user[r]
    required_roles[r]
}

roles_for_user[r] {
    r := user_roles[user_name][_]
}

required_roles[r] {
    perm := role_perms[r][_]
    perm.method = http_request.method
    perm.path = http_request.path
}

user_name = parsed {
    [_, encoded] := split(http_request.headers.authorization, " ")
    [parsed, _] := split(base64url.decode(encoded), ":")
}

user_roles = {
    "alice": ["guest"],
    "bob": ["admin"]
}

role_perms = {
    "guest": [
        {"method": "GET",  "path": "/people"},
    ],
    "admin": [
        {"method": "GET",  "path": "/people"},
        {"method": "POST",  "path": "/people"},
    ],
}

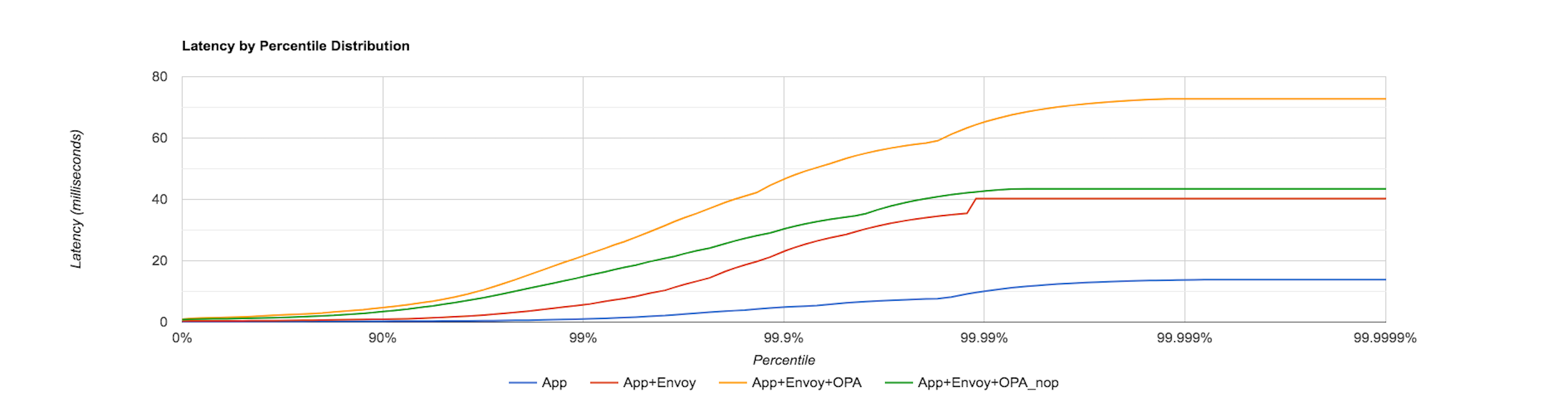

The above four scenarios are replicated to measure the latency distribution now by sending 1000 requests/sec to the sample application. The following graph captures this result.

OPA Benchmarks

The table below captures the gRPC Server Handler and OPA Evaluation time with Envoy External Authorization API enabled and the RBAC policy described above loaded into OPA. All values are in microseconds.

OPA Evaluation

OPA Evaluation is the time taken to evaluate the policy.

Number of Requests per sec 75% 90% 95% 99% 99.9% 99.99% Mean Median
100 419.568 686.746 962.673 4048.899 14549.446 14680.476 467.001 311.939
1000 272.289 441.121 765.384 2766.152 63938.739 65609.013 380.009 207.277
2000 278.970 720.716 1830.884 4104.182 35013.074 35686.142 450.875 178.829
3000 266.105 693.839 1824.983 5069.019 368469.802 375877.246 971.173 175.948
4000 373.699 1087.224 2279.981 4735.961 95769.559 96310.587 665.828 218.180
5000 303.871 1188.718 2321.216 6116.459 317098.375 325740.476 865.961 188.054
gRPC Server Handler

gRPC Server Handler is the total time taken to prepare the input for the policy, evaluate the policy (OPA Evaluation) and prepare the result.

Number of Requests per sec 75% 90% 95% 99% 99.9% 99.99% Mean Median
100 825.112 1170.699 1882.797 6559.087 15583.934 15651.395 862.647 613.916
1000 536.859 957.586 1928.785 4606.781 139058.276 141515.222 884.912 397.676
2000 564.386 1784.671 2794.505 43412.251 271882.085 272075.761 2008.655 351.330
3000 538.376 2292.657 3014.675 32718.355 364730.469 370538.309 1799.534 322.755
4000 708.905 2397.769 4134.862 316881.804 636688.855 637773.152 7054.173 400.242
5000 620.252 2197.613 3548.392 176699.779 556518.400 558795.978 4581.492 339.063
Resource Utilization

The following table records the CPU and memory usage for the OPA-Envoy container. These metrics were obtained using the kubectl top command. No resource limits were specified for the OPA-Envoy container.

Number of Requests per sec CPU(cores) Memory(bytes)
100 253m 21Mi
1000 563m 52Mi
2000 906m 121Mi
3000 779m 117Mi
4000 920m 159Mi
5000 828m 116Mi

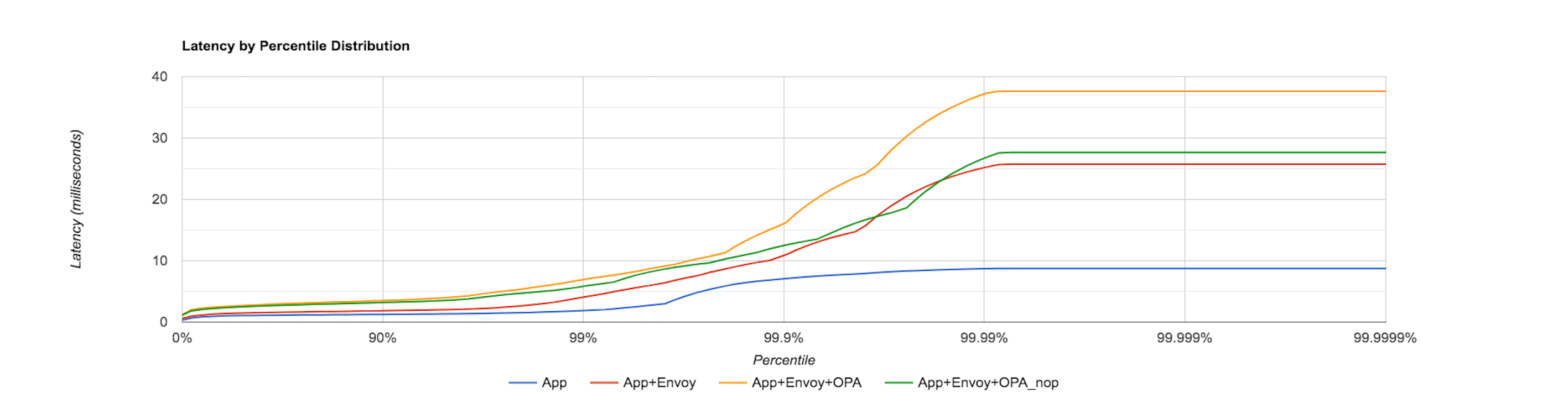

In the analysis so far, the gRPC client used in Envoy’s External authorization filter configuration is the Google C++ gRPC client. The following graph displays the latency distribution for the same four conditions described previously (ie. App Only, App and Envoy, App, Envoy and OPA (NOP policy) and App, Envoy and OPA (RBAC policy)) by sending 100 requests/sec to the sample application but now using Envoy’s in-built gRPC client.

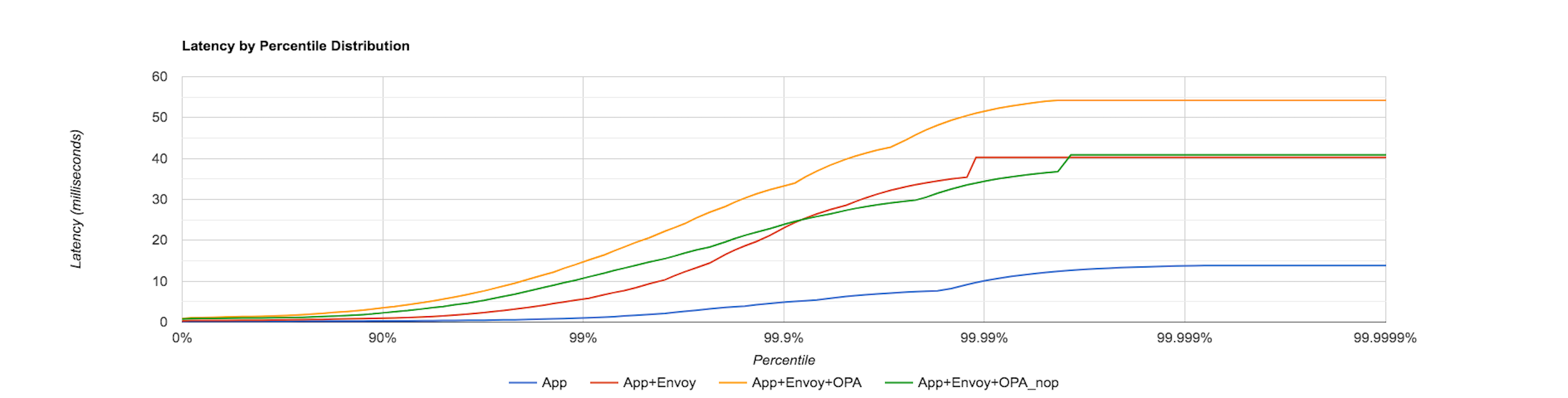

The below graph captures the latency distribution when 1000 requests/sec are sent to the sample application and Envoy’s in-built gRPC client is used.

The above graphs show that there is extra latency added when the OPA-Envoy plugin is used as an external authorization service. For example, in the previous graph, the latency for the App, Envoy and OPA (NOP policy) condition between the 90th and 99th percentile is at least double than that for App and Envoy.

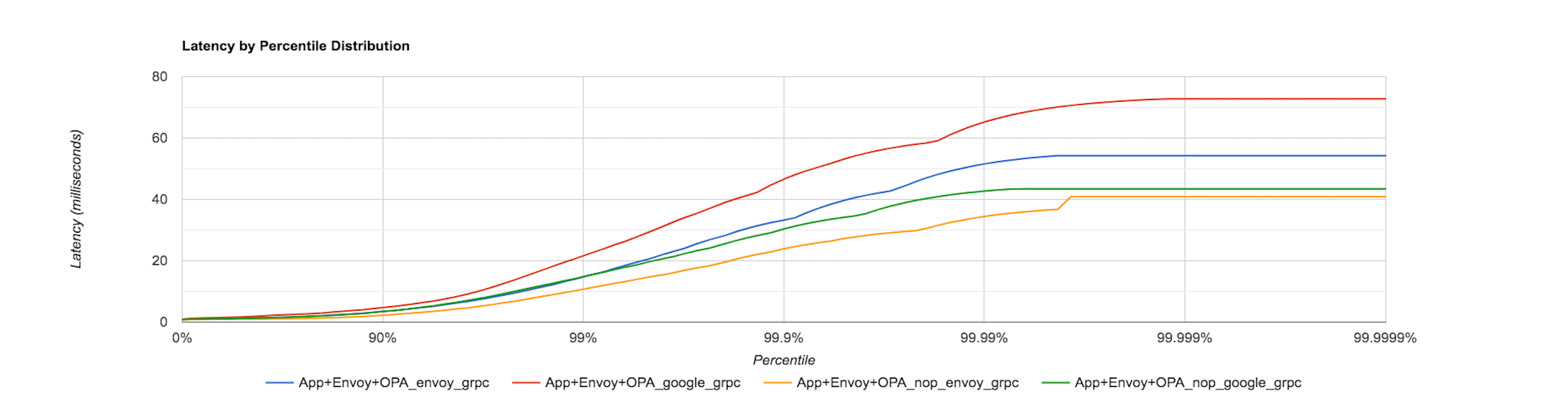

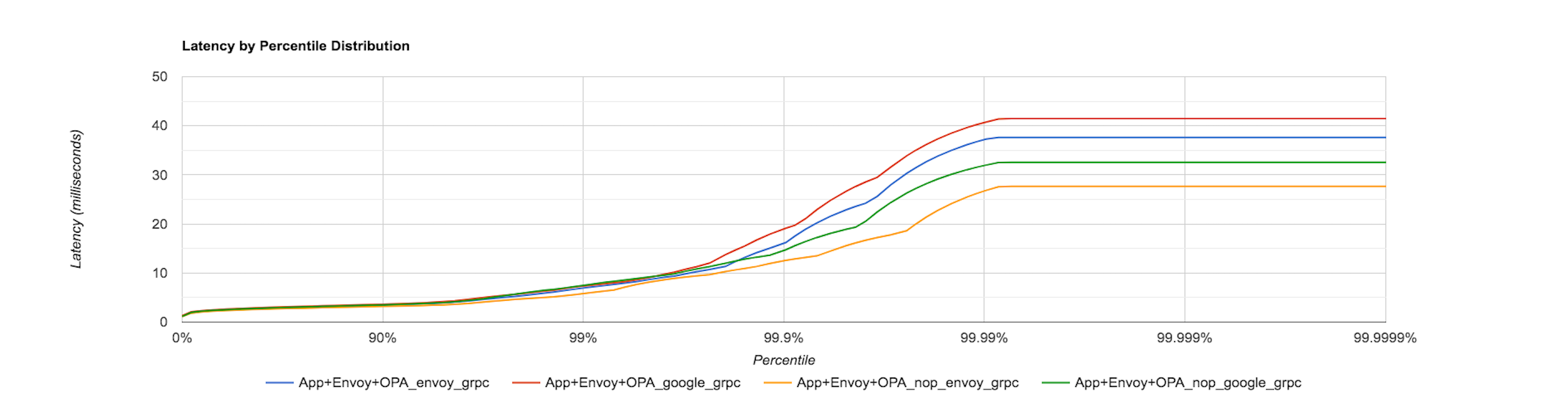

The following graphs show the latency distribution for the App, Envoy and OPA (NOP policy) and App, Envoy and OPA (RBAC policy) condition and plot the latencies seen by using the Google C++ gRPC client and Envoy’s in-built gRPC client in the External authorization filter configuration. The first graph is when 100 requests/sec are sent to the application while the second one for 1000 requests/sec.
